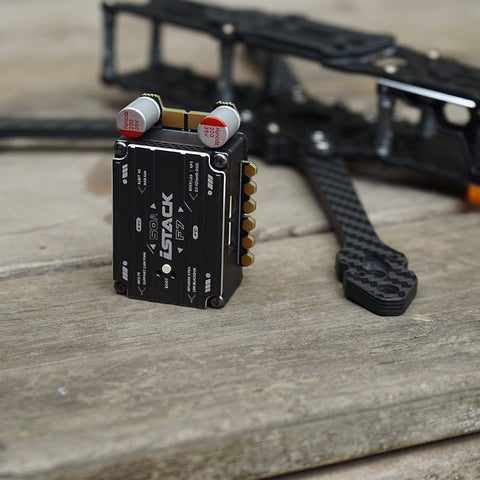

AXISFLYING iStack F7 Flight Controller + 50A 4IN1 ESC 128khz Stack 20x20mm
The Axisflying iStack is a plug-and-play F7 flight controller + 50A ESC stack fully encased and protected in a CNC aluminum heat sink for durability and cooling. This makes for a build that is easy to put together and very clean.
The F7 flight controller supports both analog and HD, 2-6S voltage input, has a 5V @3A BEC, and is powered by a very powerful F7 MCU. The 4-In-1 ESC is a 50A continuous, 60A burst ESC supporting 128Khz PWM frequency for ultra-smooth throttle response and power.
Specifications:
FLIGHT CONTROLLER
- Betaflight Target: AXISFLYINGF7
- MCU: STM32F722
- Gyro: MPU6000
- Barometer: QMP6988
- Blackbox Flash: 16MB
- UART ports: 6
- Input Voltage: 2-6S
- BEC: 5V @3A
- Size: 37.4*29.6mm
- Mounting Holes: 20*20mm
ESC
- Continuous Current: 50A
- Burst Current: 60A
- PWM Frequency: 128Khz
