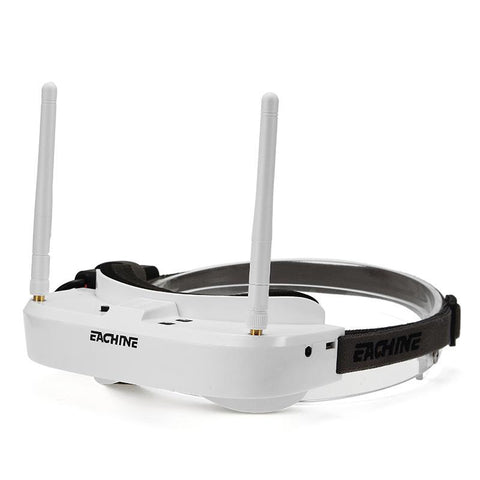

Eachine EV100 FPV Goggles 720x540 72 Channel Dual Antennas Fan WHITE BLACK
Description
- Item Name : EV100
- Size : 165mm*76mm*30mm
- Weight : 221g(with battery 57g and antenna 13g)
- Package Weight : 400g
Display
- Resolution : 720*540
- FOV : 28° diagonal
- IPD : 58-68mm
- Ratio : 4:3
- Focal length adjusting: under 400 degree of myopia and hyporopia 150 degree
Specification
- Frequency : 5.8G 5333Mhz-5945Mhz
- Sensitivity : <=-93dB
- Antenna Impedance : 50Ω
- Antenna Gain : 3dBi
- Antenna Connector : RP-SMA
- Video Formate : NTSC/PAL
- Support AV IN/OUT
- Support Focal Length/Brightness/Contrast Adjustment
- Suport Firmware Upgrading
- Power Input : 7.4V
- Low Voltage : 6.8V
- Battery : 2S 7.4V 1000mAh (not included)
- Charging : USB Cable(not included)
- Working Temp. : -10℃-+40℃
Get 2x 18650 Battery Here: Panasonic 18650 Battery
Features
Support AV Input and Output
Support External HDMI to AV Module
Support External DVR module
Single receiver with Dual Antennas, enhance the reception and stable performance.
With Fan, can defog the glasses for good visual experience.
Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel of stongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz
Package Included
- 1x Eachine EV100 5.8G 72CH FPV Goggles
- 1x 18650 Battery case (not include battery)
- 2x RP-SMA 3dBi Antenna
- 1x User Manual
