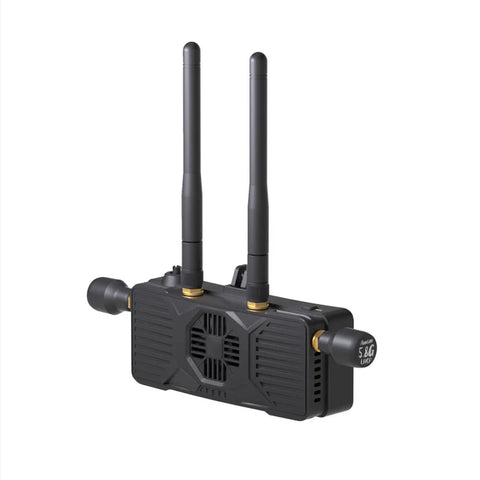

RunCam WiFiLink RX Digital HD Receiver Support OpenIPC Ruby System VTX
Specifications
| Model | WiFiLink-RX |
| Frequency | 5180~5885 MHz |
| Transmission Power | < 25dBm(FCC) < 14dBm(CE) < 20dBm(SRC) < 25dBm(MIC) |
| Interface | Mini-HDMI, Micro-SD, DC 5.5x2.1mm, Type-C, OTG |
| Mini-HDMI Output | 1080P 60fps / 720P 60fps |
| Power Input | 9~30V (3~6S) |
| MicroSD Card | Supports up to 256GB |
| Built-in Storage | 32G (including system files) |
| System | Ruby FPV / OpenIPC |
| Dimensions | (L)110.0mm x (W)27.3mm x (H)46.0mm |
| Weight | 122.0g (±1g) (antenna excluded) |
| Model | Stick Antenna |
| Polarization | Vertical Polarization(VP) |
| Frequency | 5150~5850 MHz |
| Average Gain | 2.5dBi |
| Standing Wave Ratio (SWR) | <=2.0 |
| Dimensions | (R)4.8mm x (H)108.4mm |
| Weight | 6.6g |
| Model | Pagoda Antenna |
| Polarization | Left-Hand Circular Polarization（LHCP） |
| Frequency | 5500~5900 MHz |
| Average Gain | 2.5dBi |
| Standing Wave Ratio (SWR) | <=2.0 |
| Dimensions | (R)8.0mm x (H)23.9mm |
| Weight | 4.4g |
