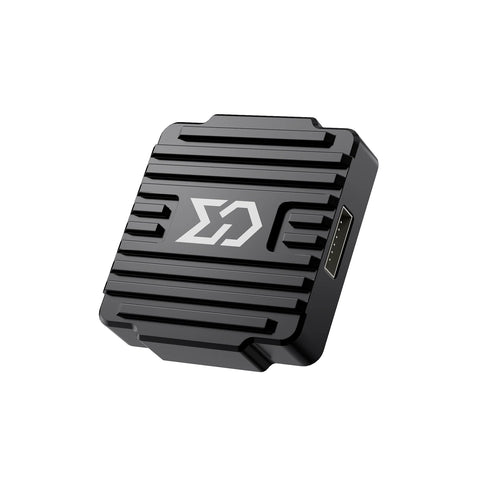

Sub250 Send T1600 5.8G VTx Analog Video Transmitter
Features:
- Compact yet powerful, up to 1600mW for clear long-range video
- Four adjustable power levels
- Rugged CNC aluminum shell for added durability and superior heat dissipation
- Temperature control protection function prevents burns from overheating
- Wide voltage input supports 7V-36V voltage input
- Supports 48 transmission channels
- VTX control protocol IRC Tramp supports OSD parameter adjustment
- Built-in microphone for real-time audio transmission
- One function adjustment button, three indicator lights for easy operation
Specifications:
- Model：Sub250 Send T1600 VTX
- Channels: 48 CH
- Output power：25mW/200mW/600mW/1600mW/Pit mode
- Input voltage：DC7-36V（2-8S Battery）
- Output voltage：5V@600mA
- Protocol：IRC Tramp
- Antenna interface： MMCX
- Mounting hole：20x20mm(M2)
- Cable interface：sh1.0 6pin
- Dimension: 35x32x11mm
- Weight: 15.9g
Package Includes:
- 1 x Sub250 Send T1600 VTX
- 1 x sh1.0 6P Connecting cable
- 1 x MMCX Copper tube antenna
- 1 x MMCX to SMA (center hole)connector
- 6 x M2*5 screw
Note:
-
Installing antenna before use.
-
Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.
