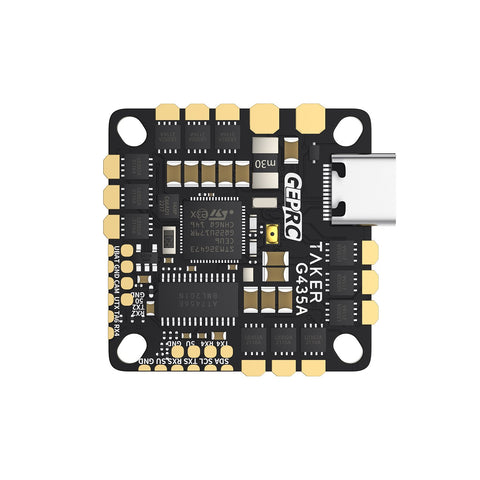

GEPRC GEP-TAKER G4 35A AIO Flight Controller 25.5x25.5mm
TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.
In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.
We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.
Feature
- Compact size and compatible mounting holes make installation convenient.
- Light weight only 7.7g.
- G473 main control, 170MHz operating frequency, abundant computing power.
- Upgraded Type-c USB for better versatility.
Specifications
- Model Name：TAKER G4 35A AIO
- MCU：STM32G473CEU6
- IMU：ICM 42688-P
- Firmware target：TAKERG4AIO
- OSD：Betaflight OSD w/ AT7456Ev
- Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5
- Buzzer：YES
- LED ：YES
- USB ：Type-c USB
- BEC output：5V@3A
- ESC MCU：BB21F16G
- Continuous Current：35A
- Burst Current：45A(5″)
- lnput Voltage：2~4S (LIPO Battery)
- Supports：Dshot600,Oneshot,Multishot
- Current meter: YES
- target：J -H -15
- Size：33.4×34.4mm Board
- Install hole：25.5-26.5 Φ3.05mm
- Weight：7.7g
Includes
- 1x GEP-TAKER G4 35A AIO
- 1x Cable Set
