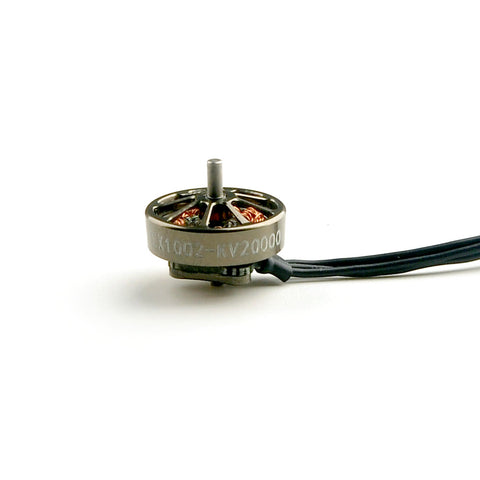

HappyModel EX1002 Brushless Motor 20000KV

Quantity

Featured Products

Infinity 1400mAh 6S 150C 22.2V LiPo Battery XT60 [DG]

Matek M10Q-5883 GPS COMPASS Module

RadioMaster Bandit ExpressLRS 915MHz ELRS RF 1W Module TX

SUNLU ASA 3D Printer Filament 1.75mm 1KG

SUNLU PETG 3D Printer Filament 1.75mm 1KG

RadioMaster Bandit BR3 ExpressLRS 915MHz ELRS TCXO Receiver

Brand name: Happymodel
Item name: EX1002 brushless motor
KV: 20000KV
Shaft Diameter: 1.5mm
Configuration: 9N12P
Stator Diameter: 10mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm
Terminals: JST1.25mm
No. of Cells(Lipo): 20000KV compatible with only 1S lipo
Wire length(exclude connector):40mm
Weight: 2.45g
Compatible for Mobula7 1S version , Mobula7 HD 1S version, Moblite7 HDZERO, and Moblite7 avatar.

Happymodel EX1002 KV20000 Brushless motor Bench data
No-load voltage	No-load current	No-load Speed	KV	Voltage (v)	Current (A)	Thrust (g)	Efficiency (g/w)	Power (w)	Propeller
2	0.5	41820	20910.0	3.7	1.01	12.9	3.452	3.737	Gemfan 2015-2 2-blade propeller
				3.7	2.01	23.3	3.133	7.437
				3.7	3	32.1	2.892	11.1
				3.7	4	40.8	2.757	14.8
				3.7	5	48.9	2.643	18.5
				3.7	5.99	55.4	2.500	22.163
