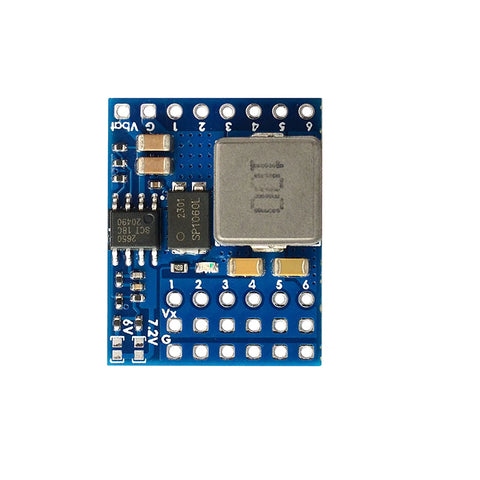

Matek SERVO PDB With BEC 5.5-36V To 5-7.2V

Applications:

Flight controllers without dedicated BEC for servos
Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

Specifications:

5.5V to 36V Operating Input Range
Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
4A Continuous load current, 7A Burst
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
Output Short-circuit tolerant (3 seconds)
No protection for reversed input polarity
Pins distance: 2.54mm
Size & Weight: 26 x 21 x 5mm, 4g

Includes:

1x Matek Servo PDB W/ BEC 5.5-36V to 5-8.2V
Dupont 2.54mm pins

Wiring Diagram:

Deal

iFlight XING2 2306 FPV Motor Unibell 4-6S 1755KV
RM78.00 MYR Was: RM92.00 MYR

Deal

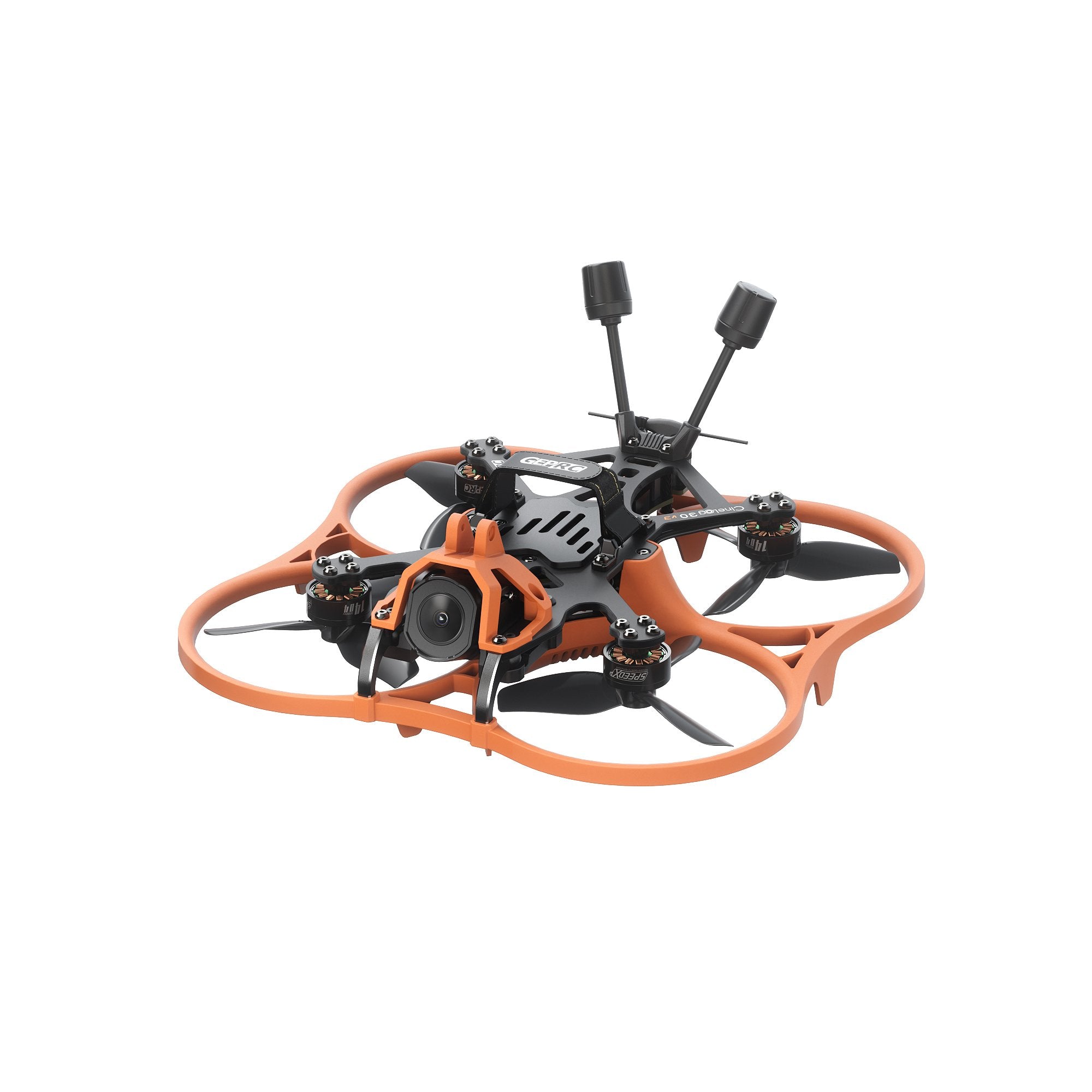

GEPRC CineLog20 HD DJI O3 CineWhoop FPV Drone
