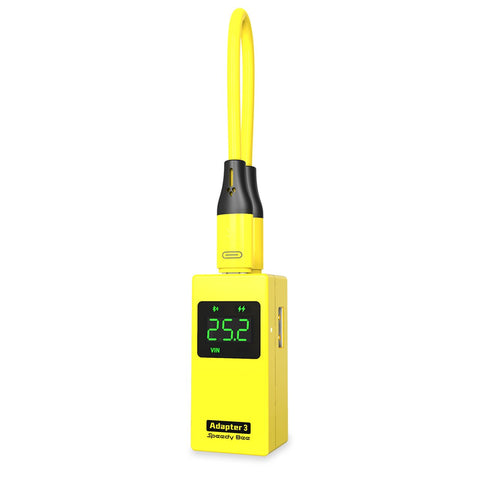

SPEEDYBEE Adapter 3 WiFi Bluetooth Type C Micro USB Cable
SpeedyBee Adapter 3 VS SpeedyBee Adapter 2:
| Item | SpeedyBee Adapter 3 | SpeedyBee Adapter 2 |
| Support 1-6S LiPo input | ✔ | ✔ |
| XT60 and PH2.0 connectors | ✔ | ✔ |
| BF/INAV/EMU configuration | ✔ | ✔ |
| Flight control firmware upgrade | ✔ | ✔ |
| Built-in WiFi | ✔ | ✔ |
| Built-in Bluetooth | ✔ | ✘ |
| Blackbox downloader and analyzer | ✔ | ✘ |
| 8-bit BLHeli_S ESC firmware updater | ✔ | ✘ |
| Built-in MicroUSB and Type C connector | ✔ | ✘ |
| Fast charging output up to 30W | ✔ | ✘ |
| Built-In LiPo Voltage Checker | ✔ | ✘ |
Package Included:
- 1x SPEEDYBEE Adapter 3
- 1x Manual Card
Parameters:
| Product Name | SpeedyBee Adapter 3 |
| Power Input Voltage Range | 1-6S(3.8V+ for 1S) |
| Power Input Connector | XT60-Male, PH2.0 male |
| Required Mobile Device System Version | Android 7.0+ | iOS 12.0+ |
| Supported SpeedyBee App Version | V1.6.1 + for iOS | V1.5.6+ for Android |
| Maximum Output Current for flight controllers | 700mA @5V |
| Fast Charging Output interface | USB A Port |
| Minimum Input Voltage for Charging output | 7.4V(2S LiPo) |
| Supported Fast Charging Protocol | • QC3.0/QC2.0 • AFC • FCP • SCP/High SCP • PE2.0/PE1.1 • SFCP |
| Max Fast Charging Current | 3.5A |
| Max Fast Charging Power | 30W |
| Case Material | ABS + PC |
| Liquid Silicone Cable Length | 12.4cm |
| Dimension(Main Body) | 24.8*21.8*53.6mm |
| Net Weight | 35g |
