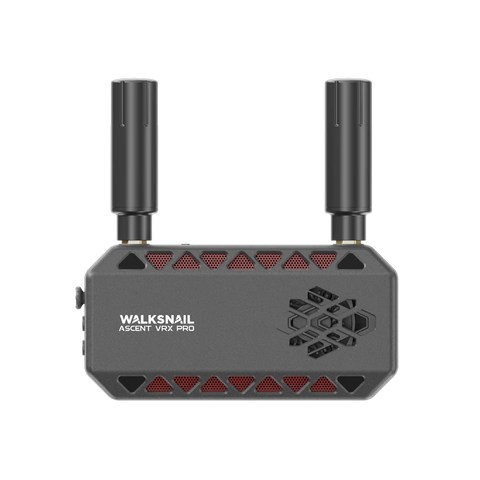

WalkSnail Ascent FPV VRX PRO Module
Specification
- Name: Ascent VRX Pro
- Communication Frequency: 5.725-5.829 GHz
- Transmitter Power(EIRP): FCC/SRRC:<30dBm, CE:<14dBm
- l/O Interfaces: HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C
- HDMI Out: 1080p/50fps, 1080p/60fps, 1080p/100fps, 1080p/120fps, 720p/50fps, 720p/60fps, 720p/100fps, 720p/120fps
- Power Input: 7.4-25.2V
- SD Card: Support Micro SD 256G
- System: Ascent HD system
- Bandwidth: 5MHz / 10MHz / 20MHz / Auto
- Menu OSD recording: Support
- Recording File System: exFAT
- Recording Format: MP4 (H.264)
- Weight: 140g
- Dimension: 114.5*64*24mm (Without Antenna)
- Antenna Name: Red Bird Pro
- Antenna Polarization: LHCP
- Antenna Bandwidth: 4.9-7.0 GHz
- Antenna Average Gain: 2.8dBi
- Connector: RP - SMAx2
- Dimension: 56.3mm*D16.5mm
- Weight: 7g
